Conveyor Rollers
Gravity Rollers
- Materials: Carbon Steel / Stainless Steel
- Housing: Polyamide Molded
- Sizes: Standard roller diameter & shaft
- Surface: Zinc/Chrome plated (Carbon) | Mirror polished (SS)
- Coatings: PU, PVC Sleeve
- Temperature: Room Temperature

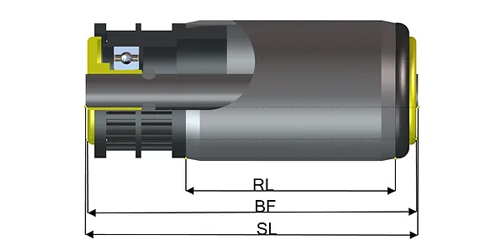

Type200 Sprocket Driven Rollers
- Drive: Fixed Drive with Sprocket
- Materials: Carbon Steel / Stainless Steel
- Housing: Polyamide Molded
- Sizes: Standard roller diameter & shaft; custom length
- Surface Treatments:
- Carbon Steel: Zinc Plated, Chrome Plated
- Stainless Steel: Mirror Polished
- Coatings: PU Coated, PVC Sleeve
Zinc Plating
- Known as Zinc Blue/White Passivation
- 3-5 micron shiny white finish
- Cost-effective and fast
- Ideal for conveying cartons and crates
Chrome Plating
- Provides a 5-micron shiny white finish
- Increases coating thickness for scratch protection
- Costly and time-consuming
- Preferred for metal parts in auto ancillary applications
PU Coated Rollers
- Polyurethane layer (4-5mm thick) for metal protection
- Offers a smooth, shiny finish in various colors
- Used to reduce metal-to-metal friction
- Thickness varies based on roller diameter
PVC Sleeve Coated Rollers
- 2-2.5mm thick sleeve applied under high pressure
- Enhances friction and grip
- Applied using a meticulous process

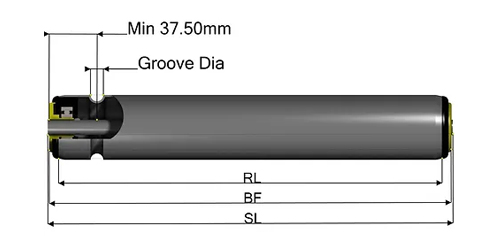

Groove Driven Rollers
Elevate your material handling with our precision-engineered Groove Driven Rollers. Designed for durability and smooth operation, these rollers are ideal for various industrial applications.
Key Features:
-
High-Quality Materials:
Constructed from robust Carbon Steel or Stainless Steel for long-lasting performance. -
Customizable Design:
Standard roller diameter and shaft combinations with options for custom lengths. -
Advanced Surface Treatments:
Carbon Steel: Zinc or Chrome Plated
Stainless Steel: Mirror Polished -
Protective Coatings:
Options include PU Coated and PVC Sleeve for enhanced durability and reduced friction. -
Optimized Performance:
Engineered for efficient, smooth operation in diverse environments, ensuring reliable material transfer.

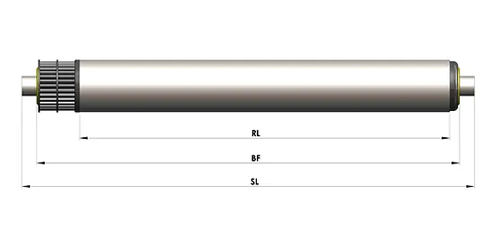

Timing Pulley Driven Rollers
- Materials: Carbon Steel / Stainless Steel
- Bearing Housing: Polyamide Molded
- Roller Diameter: 50.8 mm (1.6 mm thick)
- Timing Pulley: 5M with 28 Teeth
- Surface Treatments:
- Carbon Steel: Zinc/Chrome Plated
- Stainless Steel: Mirror Polished
- Coatings: PU Coated, PVC Sleeve
- Operating Temperature: Room Temperature
- Design Notes: BF = RL + 43; SL = RL + 44 Minimum
Timing Pulley Driven Rollers
Optimized for belt conveyor systems, our Timing Pulley Driven Rollers offer reliable performance with precise engineering.
- Materials: Carbon Steel / Stainless Steel
- Bearing Housing: Polyamide Molded
- Roller Dimensions: 60.3 mm diameter, 2.5 mm thickness
- Timing Pulley: 8 mm, 20 teeth
- Surface Treatments:
- Carbon Steel: Zinc Plated, Chrome Plated
- Stainless Steel: Mirror Polished
- Coatings: PU Coated, PVC Sleeve
- Operating Temperature: Room Temperature
- Design Parameters:
- BF = RL + 58
- SL = RL + 60 Minimum
