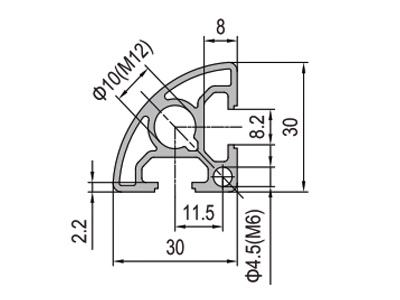

AL 30 30×30 R90 2 slots

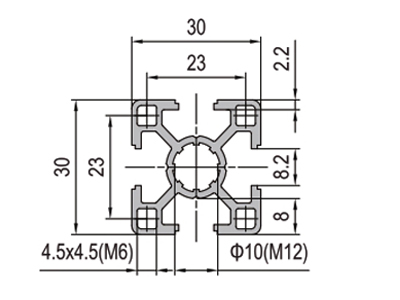

AL 30 30×30 4 slots Light

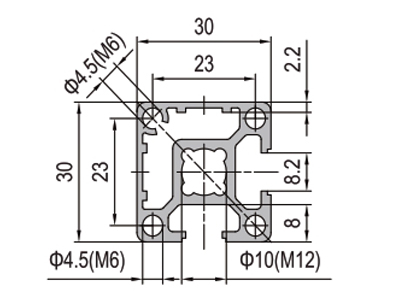

AL30 30×30 2 slots Type A

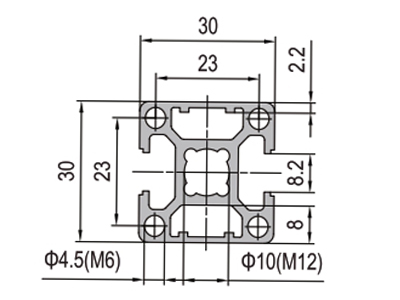

AL30 30×30 2 slots Type B

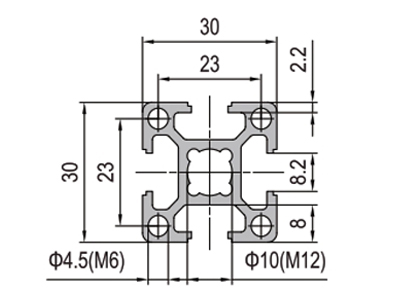

AL30 30×30 4slots

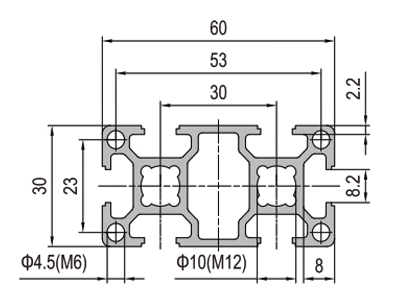

AL30 30×60 6slots

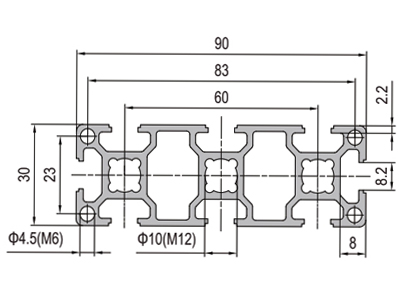

AL30 30×90 8slots
| Description | Moment of Inertia Ix(cm4) |
Moment of Inertia Iy(cm4) |
Moment of Resistance Wx(cm3) |
Moment of Resistance Wy(cm3) |
Mass (kg/m) |
Part No. |
|---|---|---|---|---|---|---|
| Strut Profile AL30 30×30 R90 2 slots |
2.5 | 1.6 | 1.2 | 0.9 | 0.8 | SMT 3030. R90/02 |
| Strut Profile AL30 30×30 4 slots Light |
2.6 | 2.6 | 1.8 | 1.8 | 0.8 | SMT 3030.04 |
| Strut Profile AL30 30×30 2 slots Type A |
2.9 | 2.9 | 2.0 | 2.0 | 0.9 | SMT 3030.04 /A |
| Strut Profile AL30 30×30 2 slots Type B |
2.8 | 3.2 | 1.9 | 2.1 | 0.9 | SMT 3030.02 / B |
| Strut Profile AL30 30×30 4 slots |
2.9 | 2.9 | 2.0 | 1.9 | 0.9 | SMT 3030.04 |
| Strut Profile AL30 30×60 6 slots |
5.3 | 19.9 | 3.5 | 6.7 | 1.6 | SMT 3060.06 |
| Strut Profile AL30 30×90 8 slots |
7.7 | 62.0 | 5.1 | 13.8 | 2.2 | SMT 3090.08 |
