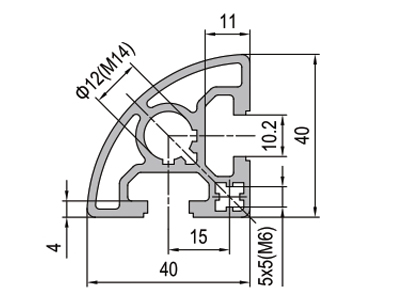

AL40 40×40 R90 2 slots
ALA40 40×40 4 slots Super Light
AL 40 40×40 4 slots Light

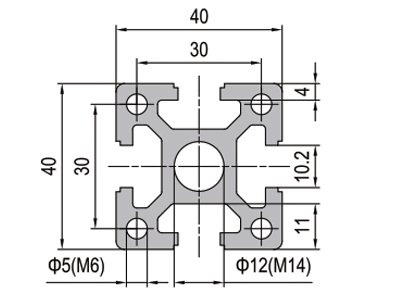

AL 40 40×40 2 slots Type A
AL 40 40×40 2 slots Type B

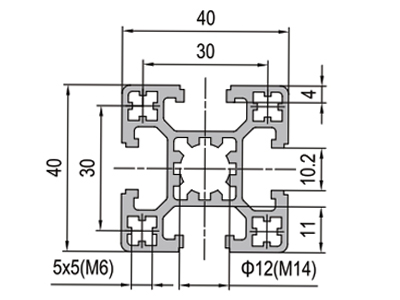

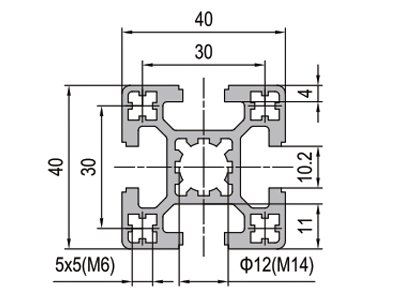

AL40 40×40 4slots

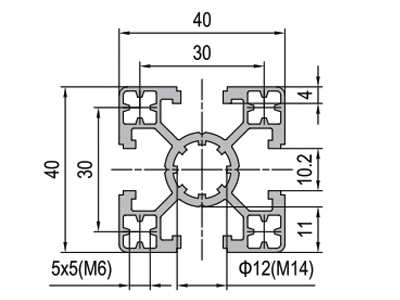

AL 40 40×40 4slots Heavy

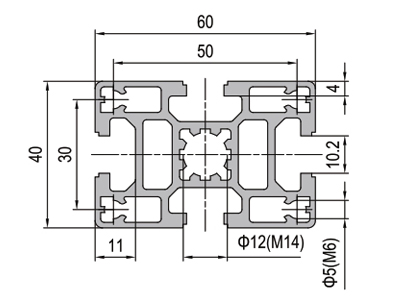

AL40 40×60 4slots
AL 40 40×80 6 slots Super Light

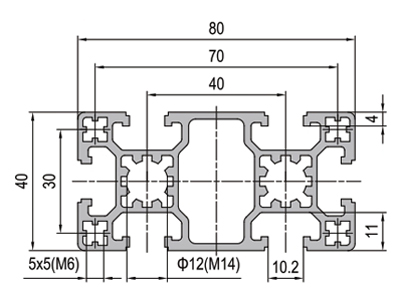

AL 40 40×80 6 slots Light

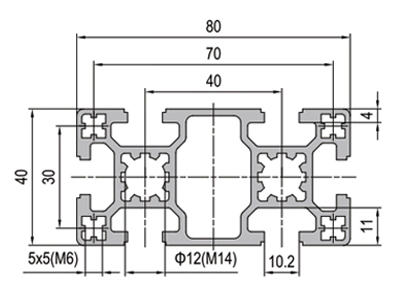

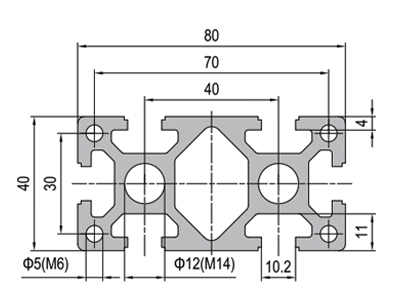

AL 40 40×80 6 slots
AL 40 40×80 6 slots Heavy

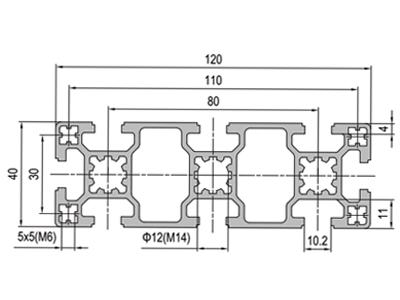

AL 40 40×120 8 slots
AL40 40×120 8 slots Heavy
| Description | Moment of Inertia Ix(cm4) | Moment of Inertia ly(em4) | Moment of Resistance Wx(cm3) | Moment of Resistance Wy(em3) | Mass (kg/m) | Part No. |
|---|---|---|---|---|---|---|
| Strut Profile AL40 40×40 R90 2 slots | 8.3 | 4.8 | 3.0 | 1.9 | 1.3 | SMT 4040. R90/02 |
| Strut Profile AL40 40×40 4 slots Super Light | 7.3 | 7.3 | 3.6 | 3.6 | 1.3 | SMT 4040. 04 / SL |
| Strut Profile AL40 40×40 4 slots Light | 8.6 | 8.6 | 4.3 | 4.3 | 1.5 | SMT 4040. 04 / L |
| Strut Profile AL40 40×40 2 slots Type A | 9.6 | 9.6 | 4.5 | 4.5 | 1.5 | SMT 4040. 02 /A |
| Strut Profile AL40 40×40 2 slots Type B | 9.6 | 8.6 | 4.8 | 4.3 | 1.5 | SMT 4040. 02 / B |
| Strut Profile AL40 40×40 4 slots | 9.1 | 9.1 | 4.6 | 4.6 | 1.6 | SMT 4040. 04 |
| Strut Profile AL40 40×40 4 slots Heavy | 11.5 | 11.5 | 5.8 | 5.8 | 2.0 | SMT 4040. 04 / H |
| Strut Profile AL40 40×60 4 slots | 13.3 | 27.6 | 6.6 | 9.2 | 2.3 | SMT 4060. 04 |
| Strut Profile AL40 40×80 6 slots Super Light | 14.3 | 52.0 | 7.2 | 13.0 | 2.3 | SMT 4080. SL / 06 |
| Strut Profile AL40 40×80 6 slots Light | 15.8 | 59.1 | 7.9 | 14.8 | 2.5 | SMT 4080. L / 06 |
| Strut Profile AL40 40×80 6 slots | 16.6 | 63.2 | 8.3 | 15.8 | 2.7 | SMT 4080. 06 |
| Strut Profile AL40 40×80 6 slots Heavy | 22.2 | 80.8 | 11.1 | 20.2 | 3.6 | SMT 4080. H / 06 |
| Strut Profile AL40 40×120 8 slots | 24.1 | 194.8 | 12.1 | 32.5 | 3.8 | SMT 40120. 08 |
| Strut Profile AL40 40×120 8 slots Heavy | 33.0 | 255.3 | 16.5 | 42.6 | 5.2 | SMT 40120. H 108 |
