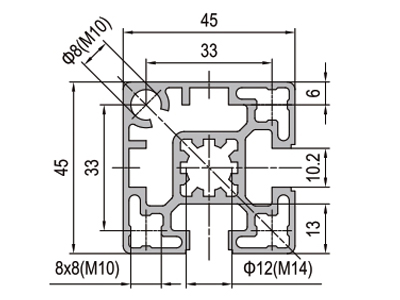

AL40 40×40 R90 2 slots

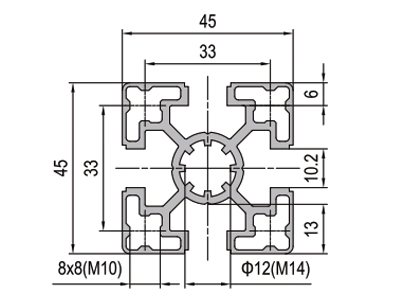

AL 45 45×45 4 slots Light

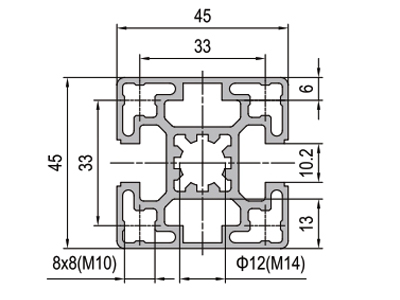

AL 45 45×45 2 slots Type A
AL45 45×45 2 slots Type B

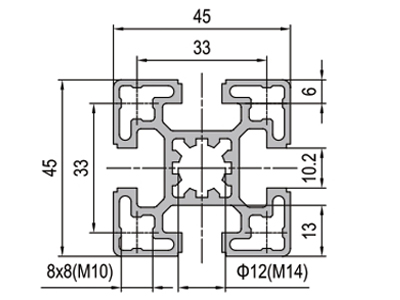

AL45 4545 4 slots

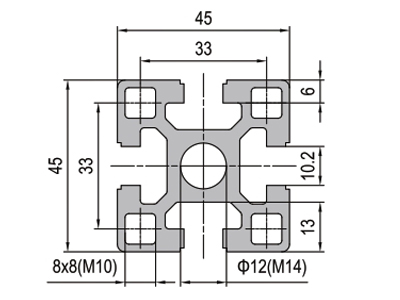

AL 45 45×45 4 slots Heavy

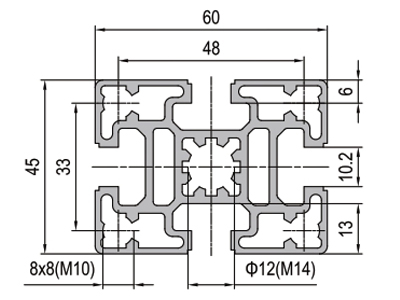

AL45 45×60 4 slots
AL 45 45×90 4 slots

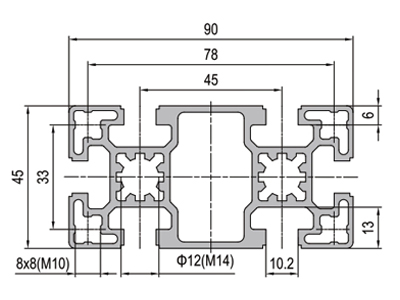

AL 45 45×90 6 slots

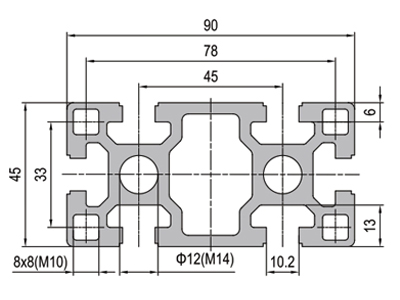

AL 45 45×90 6 slots Heavy
| Description | Moment of Inertia Ix(cm4) | Moment of Inertia ly(em4) | Moment of Resistance Wx(cm3) | Moment of Resistance Wy(em3) | Mass (kg/m) | Part No. |
|---|---|---|---|---|---|---|

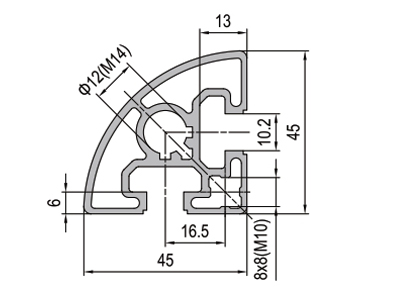

| Strut Profile AL45 45×45 R90 2 slots | 10.5 | 6.4 | 3.5 | 2.4 | 1.5 | SMT 4545. R90 / 02 |
| Strut Profile AL45 45×45 4 slots Light | 10.5 | 10.5 | 4.7 | 4.7 | 1.6 | SMT 4545. 04 / L |
| Strut Profile AL45 45×45 2 slots Type A | 12.9 | 12.9 | 5.7 | 5.7 | 1.9 | SMT 4545. A / 02 |
| Strut Profile AL30 30×30 2 slots Type B | 13.7 | 12.1 | 6.1 | 5.4 | 1.9 | SMT 4545. B / 02 |
| Strut Profile AL45 45×45 4 slots | 12.1 | 12.1 | 5.4 | 5.4 | 1.8 | SMT 4545. / 04 |
| Strut Profile AL30 30×60 6 slots | 5.3 | 19.9 | 3.5 | 6.7 | 1.6 | SMT 3060.06 |
| Strut Profile AL45 45×45 4 slots Heavy | 16.5 | 16.5 | 7.4 | 7.4 | 2.4 | SMT 4545. H / 02 |
| Strut Profile AL45 45×60 4 slots | 16.2 | 27.8 | 7.2 | 9.3 | 2.4 | SMT 45451 04 |
| Strut Profile AL45 45×90 6 slots | 24.2 | 89.3 | 10.8 | 19.9 | 3.2 | SMT 4545. / 06 |
| Strut Profile AL45 45×90 6 slots Heavy | 32.5 | 122.2 | 14.5 | 27.2 | 4.4 | SMT 4545. H / 06 |
| Strut Profile AL45 45×90 6 slots Heavy | 32.5 | 122.2 | 14.5 | 27.2 | 4.4 | SMT 4545. H / 06 |
