Feeder Conveyor

Conveyor Rollers

Enhance your material handling operations with our precision-engineered Conveyor Rollers. Designed for smooth, efficient, and reliable movement, our rollers help streamline your production process while reducing downtime and manual labor.

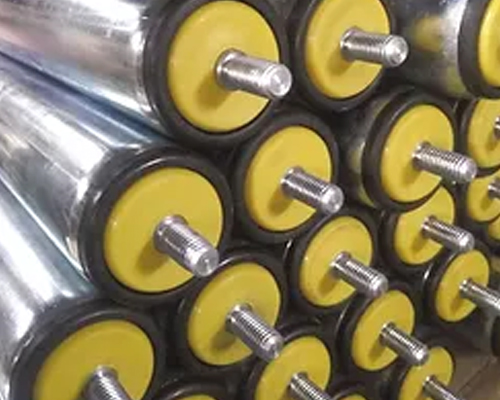

Gravity Rollers

  • Materials: Carbon Steel / Stainless Steel
  • Housing: Polyamide Molded
  • Sizes: Standard roller diameter & shaft
  • Surface: Zinc/Chrome plated (Carbon) | Mirror polished (SS)
  • Coatings: PU, PVC Sleeve
  • Temperature: Room Temperature

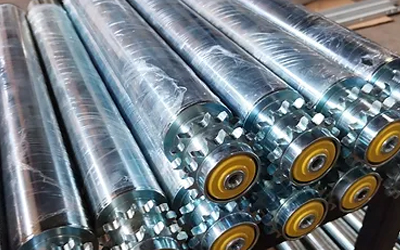

Type200 Sprocket Driven Rollers

  • Drive: Fixed Drive with Sprocket
  • Materials: Carbon Steel / Stainless Steel
  • Housing: Polyamide Molded
  • Sizes: Standard roller diameter & shaft; custom length
  • Surface Treatments:
  • Carbon Steel: Zinc Plated, Chrome Plated
  • Stainless Steel: Mirror Polished
  • Coatings: PU Coated, PVC Sleeve
Zinc Plating
  • Known as Zinc Blue/White Passivation
  • 3-5 micron shiny white finish
  • Cost-effective and fast
  • Ideal for conveying cartons and crates
Chrome Plating
  • Provides a 5-micron shiny white finish
  • Increases coating thickness for scratch protection
  • Costly and time-consuming
  • Preferred for metal parts in auto ancillary applications
PU Coated Rollers
  • Polyurethane layer (4-5mm thick) for metal protection
  • Offers a smooth, shiny finish in various colors
  • Used to reduce metal-to-metal friction
  • Thickness varies based on roller diameter
PVC Sleeve Coated Rollers
  • 2-2.5mm thick sleeve applied under high pressure
  • Enhances friction and grip
  • Applied using a meticulous process

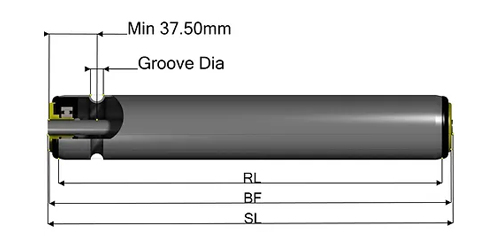

Groove Driven Rollers

Elevate your material handling with our precision-engineered Groove Driven Rollers. Designed for durability and smooth operation, these rollers are ideal for various industrial applications.

Key Features:
  • High-Quality Materials: Constructed from robust Carbon Steel or Stainless Steel for long-lasting performance.
  • Customizable Design: Standard roller diameter and shaft combinations with options for custom lengths.
  • Advanced Surface Treatments: Carbon Steel: Zinc or Chrome Plated Stainless Steel: Mirror Polished
  • Protective Coatings: Options include PU Coated and PVC Sleeve for enhanced durability and reduced friction.
  • Optimized Performance: Engineered for efficient, smooth operation in diverse environments, ensuring reliable material transfer.

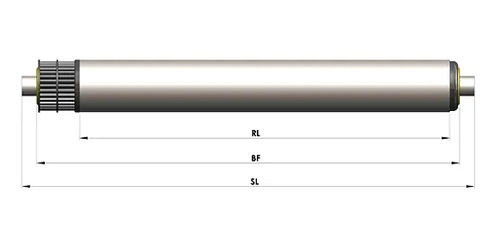

Timing Pulley Driven Rollers

  • Materials: Carbon Steel / Stainless Steel
  • Bearing Housing: Polyamide Molded
  • Roller Diameter: 50.8 mm (1.6 mm thick)
  • Timing Pulley: 5M with 28 Teeth
  • Surface Treatments:
  • Carbon Steel: Zinc/Chrome Plated
  • Stainless Steel: Mirror Polished
  • Coatings: PU Coated, PVC Sleeve
  • Operating Temperature: Room Temperature
  • Design Notes: BF = RL + 43; SL = RL + 44 Minimum

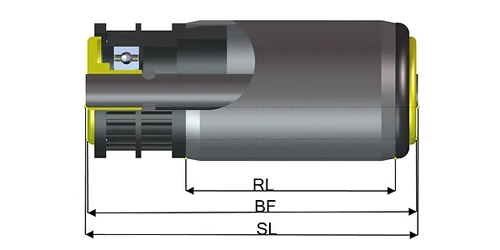

Timing Pulley Driven Rollers

Optimized for belt conveyor systems, our Timing Pulley Driven Rollers offer reliable performance with precise engineering.

  • Materials: Carbon Steel / Stainless Steel
  • Bearing Housing: Polyamide Molded
  • Roller Dimensions: 60.3 mm diameter, 2.5 mm thickness
  • Timing Pulley: 8 mm, 20 teeth
  • Surface Treatments:
  • Carbon Steel: Zinc Plated, Chrome Plated
  • Stainless Steel: Mirror Polished
  • Coatings: PU Coated, PVC Sleeve
  • Operating Temperature: Room Temperature
  • Design Parameters:
  • BF = RL + 58
  • SL = RL + 60 Minimum
